High Speed Door Motor | PE200B-750W-A4 | POWEVER

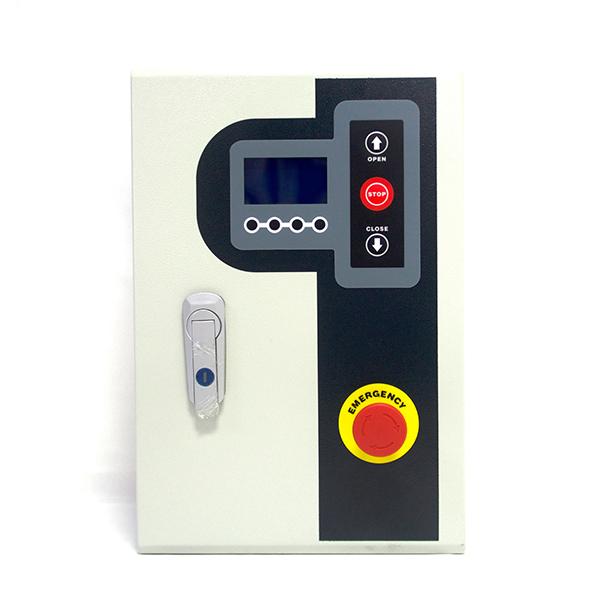

Parameter of Controller:

Model PE200
Rated power 0.75KW
Power source

AC220V±10%,50/60Hz

Speed control

Speed closed-loop control

Position control

Position closed loop control

Protection function

Overcurrent protection; Overvoltage protection; Undervoltage protection; Overheat protection; Overload protection, etc.

Operation place

Indoor, no direct sunlight, no dust, corrosive gas, oil mist, water vapor, etc

Operating environment temperature

-10℃ ~ 40℃ (use half of the deactivating amount from 40℃ to 50℃)

Weight

5.8Kg

Parameter of Motor:

Rated power

0.75KW

Rated speed

2,000 rpm

Nominal torque

3.6Nm

Operating ambient temperature

-10℃ ~ 40℃ (use half of the deactivating amount from 40℃ to 50℃)

Moment management system

Torque following system

Limit mode

Absolute value encoder, proximity switch

Self-locking way

Electro-mechanical brake

Manual release

The handle

Electrical net weight

5.0KG

Net weight of electric unit

8.3Kg (Equipped with RV50 reducer)







0.75KW Control Unit & Motor
