New Slimline Door Safety: CEDES Cegardmini-16

In the automated entrance and logistics industry, facility managers continue to seek space-saving designs that deliver maximum structural protection without complicating installation. To meet these exact industrial demands, CEDES—a global pioneer in advanced sensor technology—has introduced its latest infrared safety solution: the Cegardmini-16 light curtain.

Engineered specifically for sliding doors and fast-paced automated entrances, this system functions as an invisible vertical safety barrier to protect personnel, vehicles, and assets from physical impacts.

Core Product Features

1.Ultra-compact Slim Structure

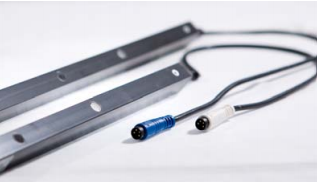

With a cross-section size of only 12mm×16mm, the tiny aluminum alloy casing occupies minimal mounting space. Three built-in mounting holes support both front and side installation modes to fit narrow door frame gaps perfectly.

2.Robust Environmental Adaptability

IP65 protection rating blocks dust, splashing water and workshop contaminants. It operates steadily in an extreme temperature range from -40°C to +60°C, ideal for indoor and semi-outdoor industrial environments.

3.High-Density Multi-Beam Safety Coverage

Equipped with 16 pairs of optical eyes forming 74 infrared light beams, the unit delivers a full 1822mm protection height within a total 2000mm length. Its detection range covers 0–4 meters to meet varying door width requirements.

Key Application Scenarios

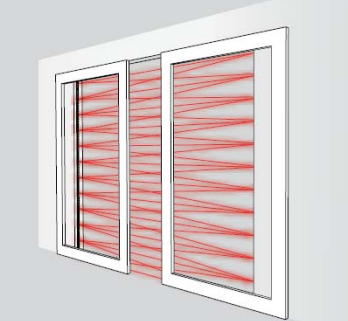

1.Sliding Automatic Doors (Static Installation)

Mounted on fixed sliding door frames, the dense infrared beam grid detects pedestrians, carts or obstacles passing through doorways. It instantly triggers door halt or reverse movement to prevent crushing injuries in commercial buildings, warehouses and retail entrances.

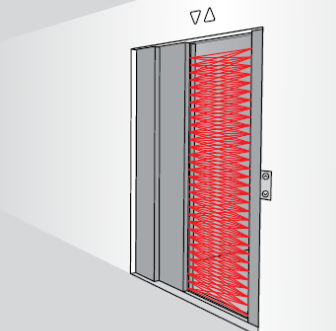

2.Dynamic Moving Door Systems

Perfect for vertically or horizontally moving dynamic door panels. The lightweight slim body follows door movement without interfering with mechanical operation, delivering real-time safety detection for high-speed industrial automatic doors.

Why choose Cegardmini-16?
