High Speed Door Motor | PE700B-2200W-A4 | POWEVER

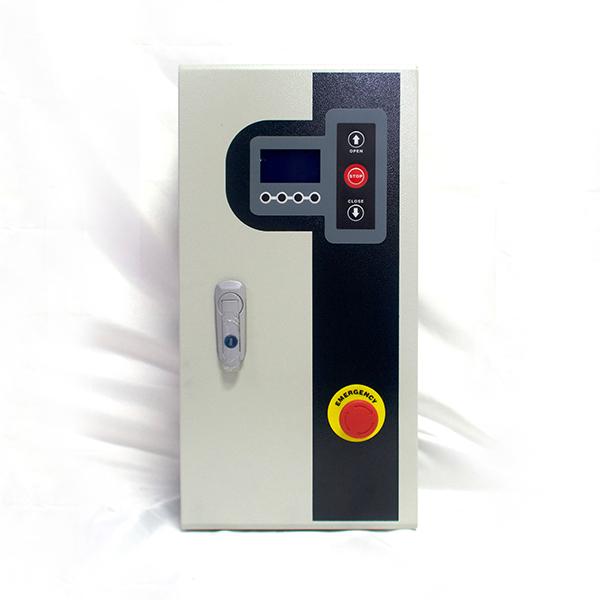

Parameter of Controller:

Model PE700
Rated power 2.2KW
Power source

AC220V±10%,50/60Hz

Speed control

Speed closed-loop control

Position control

Position closed loop control

Protection function

Overcurrent protection; Overvoltage protection; Undervoltage protection; Overheat protection; Overload protection, etc.

Operation place

Indoor, no direct sunlight, no dust, corrosive gas, oil mist, water vapor, etc

Operating environment temperature

-10℃ ~ 40℃ (use half of the deactivating amount from 40℃ to 50℃)

Weight

8.7Kg

Parameter of Motor:

Rated power

2.2KW

Rated speed

1,500 rpm

Nominal torque

15Nm

Operating ambient temperature

-10℃ ~ 40℃ (use half of the deactivating amount from 40℃ to 50℃)

Moment management system

Torque following system

Limit mode

Absolute value encoder, proximity switch

Self-locking way

Electro-mechanical brake

Manual release

The handle

Electrical net weight

15.6KG

Net weight of electric unit

24.2Kg (Equipped with RV75 reducer)







2.2KW Control Unit & Motor
