PNP / NPN output (push-pull)
TECHNICAL SPECIFICATIONS
|
Operating range |
0.1 … 12 m |
|
-Emitter |
±7° at 6 m |
|
-Receiver |
±9° at 6 m |
|
Dimensions |
31 × 25 × 11 mm |
|
Protection Rating |
IP65 |
|
Operating Temperature |
−25°C … +60 °C |
|
Power supply |
10 ... 30 VDC |
|
Cable length |
12 m+12m |

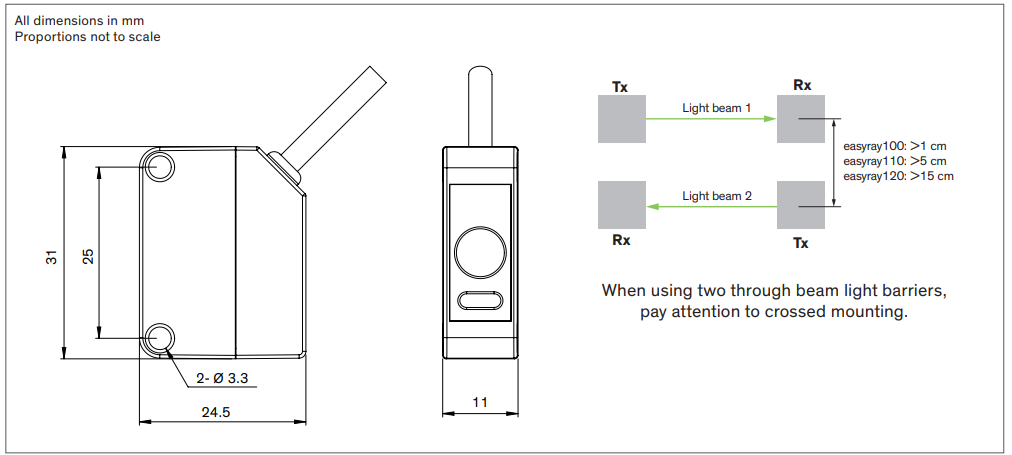

Dimensions

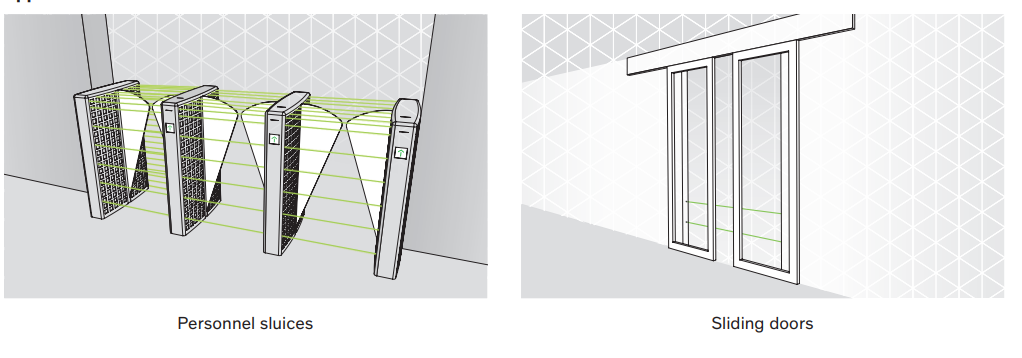

Applications
