‌Easyray100 Single Beam Sensor: Advanced Features for Industrial Precision

‌Introduction‌

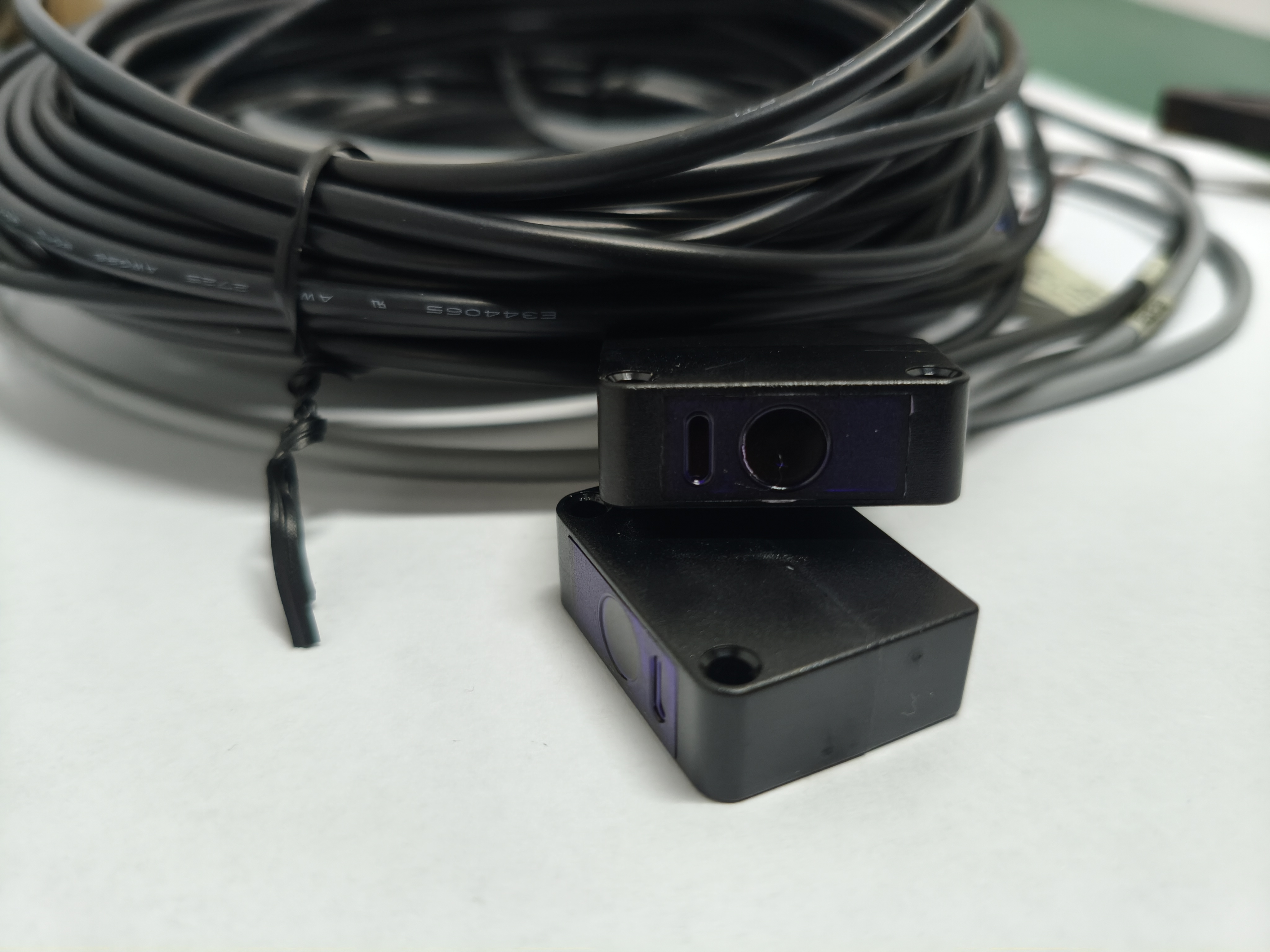

The ‌Easyray100 Single Beam Sensor‌ is a high-performance optical sensing solution designed for industrial automation, offering unmatched reliability and precision. Engineered for harsh environments, this sensor combines cutting-edge technology with user-friendly features, making it ideal for applications in manufacturing, logistics, and process control. This article explores its ‌key features‌, technical specifications, and advantages in detail.

‌Core Features‌
‌1. Easy Installation & Cost Efficiency‌
Unlike traditional sensors that require expensive mounting kits, the Easyray100 boasts ‌plug-and-play functionality‌. Its compact design and intuitive setup minimize installation time and reduce deployment costs. This feature is particularly valuable for industries seeking rapid sensor integration without complex configurations.
‌2. Ultra-Fast Response Time‌
With a ‌response time measured in milliseconds‌, this sensor ensures real-time detection, critical for high-speed production lines. Whether monitoring conveyor belts or inspecting packaging seals, the sensor delivers instant feedback, optimizing operational efficiency.
‌3. Superior Ambient Light Resistance‌
Equipped with advanced optical filtering technology, the Easyray100 ‌rejects interference from ambient light‌ (including sunlight and artificial lighting). This ensures stable performance in brightly lit environments, such as outdoor warehouses or glass production facilities.
‌4. Extended Operating Range (Up to 12m)‌
The sensor’s long detection range (0.5m–12m) accommodates diverse industrial needs, from close-range object detection to large-area material monitoring. This versatility eliminates the need for multiple sensor models, simplifying inventory management.
‌5. Flexible Output Options (PNP/NPN)‌
The sensor supports ‌both PNP and NPN push-pull outputs‌, allowing seamless integration with PLCs, relays, and control systems. This dual-mode compatibility ensures compatibility with a wide range of industrial automation setups.
‌6. Robust Enclosure (IP65 Rated)‌
Built to withstand harsh conditions, the sensor features an ‌IP65-rated enclosure‌, protecting against dust, water jets, and mechanical impacts. This durability makes it suitable for:
Food processing plants (high-pressure washdowns)
Automotive manufacturing (grease and vibration exposure)
Mining operations (dusty environments)
‌7. Wide Temperature Tolerance (-25°C to +60°C)‌
Unlike standard sensors that fail in extreme temperatures, the Easyray100 operates reliably in:
Freezing conditions‌ (-25°C) for cold storage logistics
High-heat environments‌ (+60°C) near furnaces or dryers

‌Electrical Specifications

Parameter	Specification
‌Supply Voltage	10–30 VDC
‌Current Consumption	<15 mA (Emitter/Receiver at 24VDC)
‌Output Type	PNP/NPN (Push-Pull)
‌Protection	Reverse polarity, short-circuit

‌Applications & Industries‌
The Easyray100’s features make it indispensable across multiple sectors:
Packaging‌: Detecting missing labels or seal defects at high speeds.
Automotive‌: Ensuring correct part placement on assembly lines.
Pharmaceutical‌: Monitoring pill bottle fill levels without contamination risks.
Agriculture‌: Counting produce in automated sorting systems.

‌Conclusion‌
The Easyray100 Single Beam Sensor redefines industrial sensing with its ‌speed, durability, and adaptability‌. By eliminating installation complexity, resisting environmental challenges, and offering flexible outputs, it empowers businesses to enhance productivity while reducing maintenance costs. For industries demanding ‌precision without compromise‌, this sensor stands as a benchmark in optical detection technology.

In-Depth Technical Analysis of Easyray100 Single-Beam Sensor‌
‌1. Optical System Design‌
Laser Emitter‌: Utilizes a 660nm wavelength semiconductor laser with <3mrad aiming error and <10μrad/°C pointing stability
Optical Modulation‌: Supports multiple modulation modes (CW/A/RA/T/RT/FT/RFT) for diverse detection scenarios
Receiver Sensitivity‌: Maintains <15mA low power consumption at 10-30VDC with narrowband filters for high signal-to-noise ratio
‌2. Environmental Adaptability Technology‌
Temperature Compensation Circuit‌: Automatically calibrates optical parameters across -25°C to +60°C range
IP65 Protection Design‌: Features silicone sealing rings and corrosion-resistant housing, withstands 5kPa high-pressure water wash
Anti-Interference Design‌: Complies with EN61326-1 EMC standards, maintains stability under 30g shock
‌3. Signal Processing Architecture‌
Digital Signal Processor‌: Equipped with 32-bit ARM Cortex-M4 core for μs-level response
Adaptive Threshold Algorithm‌: Dynamically adjusts detection threshold based on ambient light, keeping false alarm rate <0.1%
Dual Output Interface‌: Independent PNP/NPN push-pull output circuits with 200mA drive current capability
‌4. Mechanical Design Innovations‌
Modular Design‌: 70g lightweight body with M12 standard threaded mounting
Adjustable Focus Mechanism‌: Precise focus adjustment from 0.5-12m range via knurled knob
Anti-Glare Coating‌: AR anti-reflection coating on lens surface reduces 3% optical energy loss
‌5. Extended Functionality‌
IO-Link Interface (Optional)‌: Enables remote parameter configuration and diagnostic data upload
Multi-Sensor Synchronization‌: Supports up to 16-unit synchronization via dedicated trigger line

Self-Diagnosis Function‌: Built-in LED status indicators for real-time power/signal/environmental fault feedback

‌Technical Parameter Comparison Table

Parameter	Specification	Test Conditions
Repeatability	±0.5mm@1m	23±2℃, 50%RH
Minimum Detectable Object	0.8mm diameter metal ball	1000 lux ambient light
Response Delay	0.3ms typical	24VDC power supply
Vibration Resistance	10-500Hz, 5Grms	IEC60068-2-6 standard
MTBF	>100,000 hours	Accelerated life test

This translation maintains all technical accuracy while adapting to standard English technical documentation conventions.
