Key features
1.Vehicle-pedestrian separation detection
2.Metal casing with IP65 protection rating
3.Installation height from 2.5 m to 6 m
4.Hold time 2s-30s options.
Performance Advantages
1.APP settings without opening the cover
2.Quick setup via preset height mode
3.Filtering of lateral motion recognition
4.Strong anti-interference capability
5.Widely utilized in commercial/industrial doors,industrial warnings
Applications

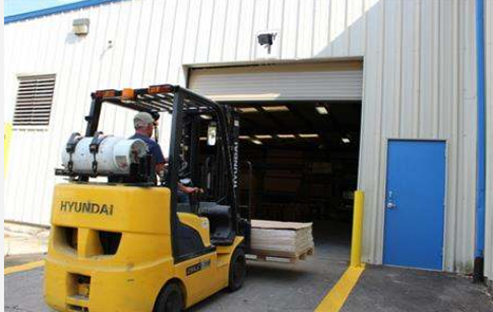

1.Industrial door
Reliable activation
Direction recognition
Person-vehicle separation
Lateral motion filtering

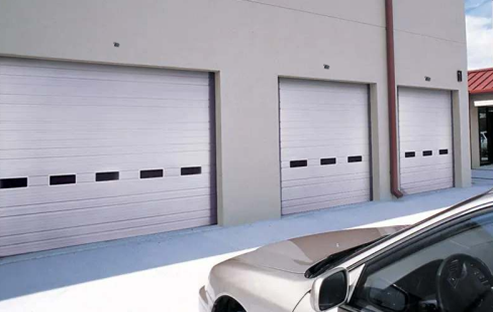

2.Garage door
Hold time options
Direction recognition
Person-vehicle separation
Lateral motion filtering
3.Traffic light control
IP65 protection rating
Direction recognition
Person-vehicle separation
Hold time options

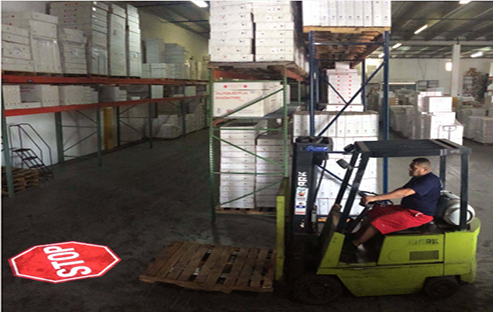

4.Industrial warning
Hold time options
Direction recognition
Person-vehicle separation
Lateral motion filtering
Performance

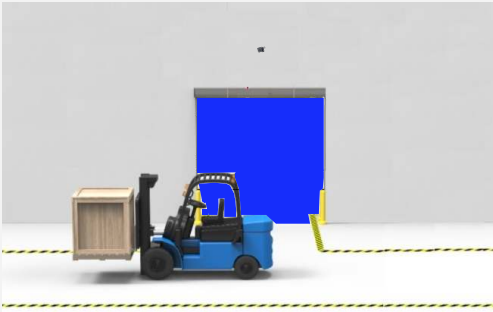

Vehicle-pedestrian separation detection
Cross traffic masking

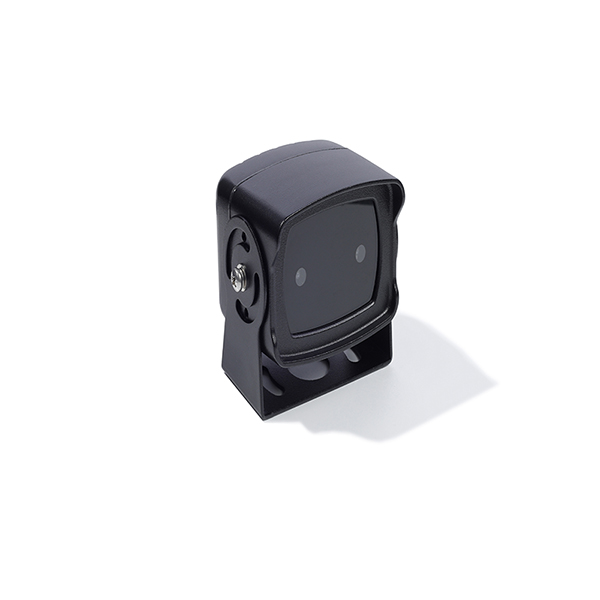

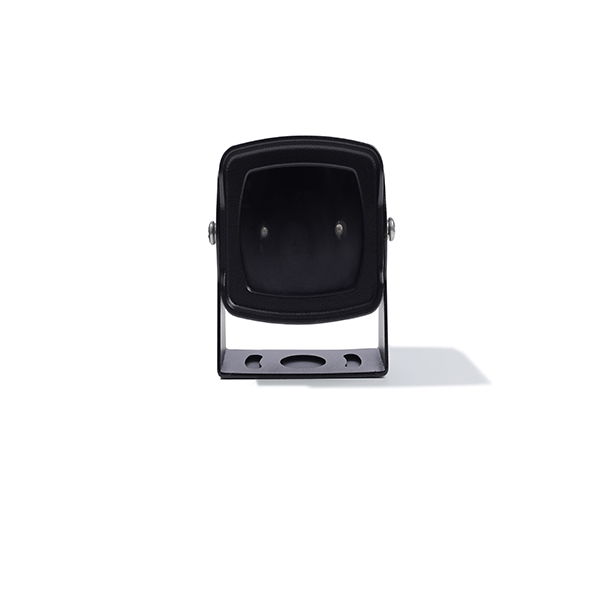

Product Description
|
Parameter |
Specification |
|
Application technology |
Doppler radar |
|
Transmission frequency |
24.125 GHz |
|
Transmission power |
<20 dBm |
|
Detection height |
2.5 m to 6 m |
|
Angle adjustment |
0° – 90° longitudinal |
|
Detection speed |
5 cm/s to 25 km/h |
|
Operation voltage |
12 – 36 V AC/DC |
|
Operation current |
Max. 75 mA |
|
Temperature range |
-30 °C to +60 °C |
|
Protection grade |
IP65 |
|
Output |
Max. 48 VAC/DC, Max. 100 mA |
|
External dimensions |
78 mm × 58 mm × 73 mm |
|
Cable length |
3 m |
|
Sensor weight |
260 g |

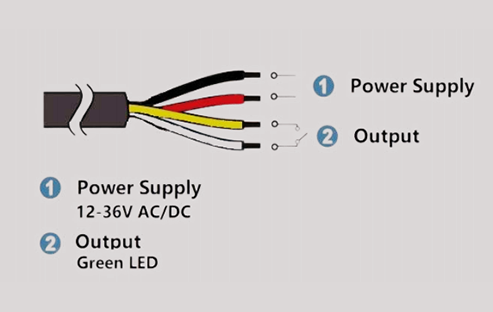

Wiring
Quick setup
Get "sensor quickset"App on Google Play
