Motor de CC sin escobillas de nueva generación para puertas correderas de cámaras frigoríficas.
Diseño compacto y control preciso, ideal para aplicaciones industriales intensivas.
Final de carrera con autoaprendizaje.
Desbloqueo manual en caso de falta de potencia, sin autobloqueo gracias al reductor planetario.
|
Model
|
|
|
|
|
|
|
|
|
|
|
|
|
Power
|
|
|
|
|
200W
|
|
|
|
|
|
|
|
Motor
|
|
|
|
|
brushless DC motor
|
|
|
|
|
|
|
|
Power Supply
|
|
|
|
|
220V±10%
|
|
|
|
|
|
|
|
Power Frequency
|
|
|
|
|
50/60Hz
|
|
|
|
|
|
|
|
Power Current
|
|
|
|
|
2A
|
|
|
|
|
|
|
|
Reducer
|
|
|
|
|
planetary reducer(1:5.4)
|
|
|
|
|
|
|
|
Output Speed
|
|
|
|
|
140 rpm
|
|
|
|
|
|
|
|
Max Speed
|
|
|
|
|
0.9m/s
|
|
|
|
|
|
|
|
Max. Door Size
|
20m²
|
|
|
|
|
|
|
|
Automatic Close
|
|
|
|
|
0-99s
|
|
|
|
|
|
|
|
Protection Rating (Motor)
|
|
|
|
|
IP54
|
|
|
|
|
|
|
|

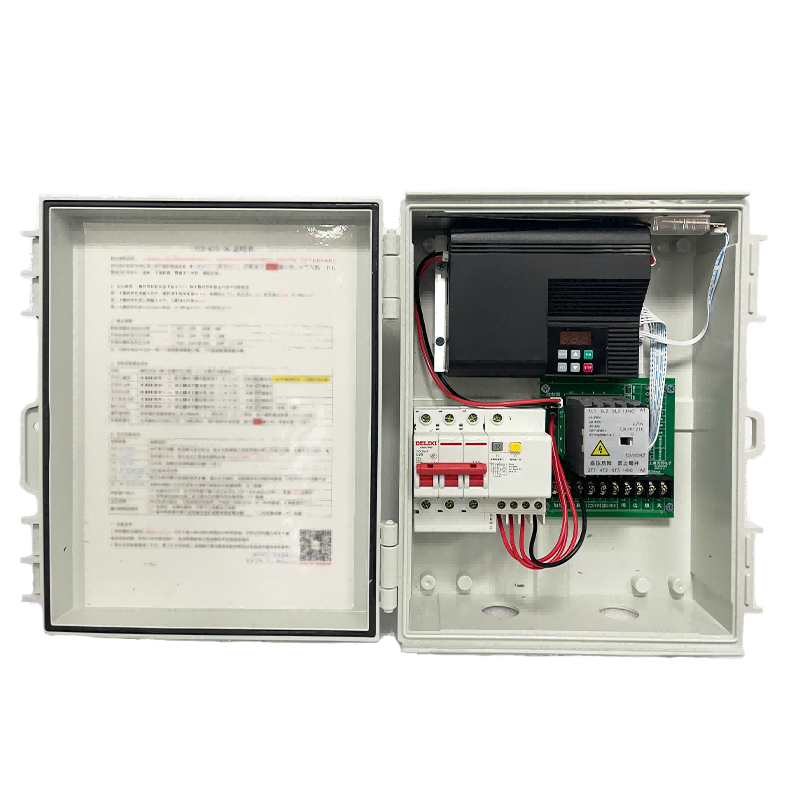

Protection Rating (Controller)
|
|
|
|
|
IP65
|
|
|
|
|
|
|
|
Manual Release
|
|
|
|
|
No power, no selflock
|
|
|
|
|
|
|
|
Operating Ambient Temperature
|
|
|
|
|
-20℃ ~ 50℃
|
|
|
|
|
|
|
|
Limit Mode
|
|
|
|
|
internal encoder + self learning
|
|
|
|
|
|
|
|
Self Lock
|
|
|
|
|
electronic mechanical brake
|
|
|
|
|
|
|
|
Standard Cable Length
|
|
|
|
|
4m
|
|
|
|
|
|
|
|
Standard Accessoreis
|
|
|
|
|
2 transmitters and 2 wirelss push buttons
|
|
|
|
|
|
|
|
Model
|
|
|
|
|
|
|
|
|
|
|
|
|
Power
|
|
|
|
|
200W
|
|
|
|
|
|
|
|
Motor
|
|
|
|
|
brushless DC motor
|
|
|
|
|
|
|
|
Power Supply
|
|
|
|
|
220V±10%
|
|
|
|
|
|
|
|
Power Frequency
|
|
|
|
|
50/60Hz
|
|
|
|
|
|
|
|
Power Current
|
|
|
|
|
2A
|
|
|
|
|
|
|
|
Reducer
|
|
|
|
|
planetary reducer(1:5.4)
|
|
|
|
|
|
|
|
Output Speed
|
|
|
|
|
140 rpm
|
|
|
|
|
|
|
|
Max Speed
|
|
|
|
|
0.9m/s
|
|
|
|
|
|
|
|
Max. Door Size
|
20m²
|
|
|
|
|
|
|
|
Automatic Close
|
|
|
|
|
0-99s
|
|
|
|
|
|
|
|
Protection Rating (Motor)
|
|
|
|
|
IP54
|
|
|
|
|
|
|
|
Protection Rating (Controller)
|
|
|
|
|
IP65
|
|
|
|
|
|
|
|
Manual Release
|
|
|
|
|
No power, no selflock
|
|
|
|
|
|
|
|
Operating Ambient Temperature
|
|
|
|
|
-20℃ ~ 50℃
|
|
|
|
|
|
|
|
Limit Mode
|
|
|
|
|
internal encoder + self learning
|
|
|
|
|
|
|
|
Self Lock
|
|
|
|
|
electronic mechanical brake
|
|
|
|
|
|
|
|
Standard Cable Length
|
|
|
|
|
4m
|
|
|
|
|
|
|
|
Standard Accessoreis
|
|
|
|
|
2 transmitters and 2 wirelss push buttons
|
|
|
|
|
|
|
|
Model
|
|
|
|
|
|
|
|
|
|
|
|
Power
|
|
|
|
|
200W
|
|
|
|
|
|
|
Motor
|
|
|
|
|
brushless DC motor
|
|
|
|
|
|
|
Power Supply
|
|
|
|
|
220V±10%
|
|
|
|
|
|
|
Power Frequency
|
|
|
|
|
50/60Hz
|
|
|
|
|
|
|
Power Current
|
|
|
|
|
2A
|
|
|
|
|
|
|
Reducer
|
|
|
|
|
planetary reducer(1:5.4)
|
|
|
|
|
|
|
Output Speed
|
|
|
|
|
140 rpm
|
|
|
|
|
|
|
Max Speed
|
|
|
|
|
0.9m/s
|
|
|
|
|
|
|
Max. Door Size
|
20m²
|
|
|
|
|
|
|
Automatic Close
|
|
|
|
|
0-99s
|
|
|
|
|
|
|
Protection Rating (Motor)
|
|
|
|
|
IP54
|
|
|
|
|
|
|
Protection Rating (Controller)
|
|
|
|
|
IP65
|
|
|
|
|
|
|
Manual Release
|
|
|
|
|
No power, no selflock
|
|
|
|
|
|
|
Operating Ambient Temperature
|
|
|
|
|
-20℃ ~ 50℃
|
|
|
|
|
|
|
Limit Mode
|
|
|
|
|
internal encoder + self learning
|
|
|
|
|
|
|
Self Lock
|
|
|
|
|
electronic mechanical brake
|
|
|
|
|
|
|
Standard Cable Length
|
|
|
|
|
4m
|
|
|
|
|
|
|
Standard Accessoreis
|
|
|
|
|
2 transmitters and 2 wirelss push buttons
|
|
|
|
|
|
|
Potencia
|
200W
|
|
Motor
|
Motor DC sin escobillas
|
|
Alimentación eléctrica
|
220V±10%
|
|
Frecuencia de alimentación
|
50/60Hz
|
|
Corriente eléctrica
|
2A
|
|
Reductor
|
Reductor planetario (1:5.4)
|
|
Velocidad de salida
|
140 rpm
|
|
Velocidad máxima
|
0.9m/s
|
|
Tamaño máximo de puerta
|
20m²
|
|
Cierre automático
|
0-99s
|
|
Grado de protección (motor)
|
IP54
|
|
Grado de protección (controlador)
|
IP65
|
|
Liberación manual
|
Sin alimentación, sin autobloqueo
|
|
Temperatura ambiente de operación
|
-20℃ ~ 50℃
|
|
Modo de límite
|
Codificador interno + autodetección
|
|
Autobloqueo
|
Freno electromecánico
|
|
Longitud estándar del cable
|
4m
|
|
Accesorios estándar
|
2 transmisores y 2 pulsadores inalámbricos
|
